Article number: 300045054

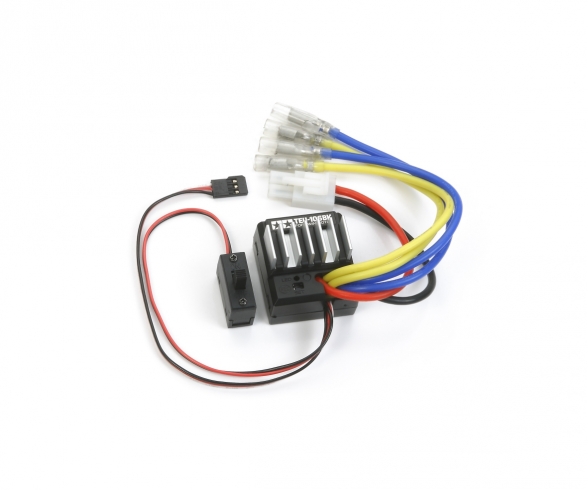

Product: Electronic Speed Controller TEU-106BK
This is a compact forward/reverse electronic speed controller for twin-motor R/C models such as the Dual Hunter and Super Clod Buster.
A single button allows easy setting of forward/reverse high points and neutral position. The reverse function can be disabled and the ESC features heat and over current protection functions with LED indicator. Compatible with Lithium-Ion battery technologies, and includes a battery cut-off function to prevent over-discharging. Alarm and LED warnings indicate no-signal status. The 106BK features an aluminum heat sink and built-in BEC.
Caution: Motors rated below 25 Turns are not meant to be used with the TEU-105BK and should not be used.
- High frequency wave drive system
- Max. continuous current (FET spec): Forward 150A, Reverse 75A
- Output: Forward 100%, Reverse 50%
- Input voltag: 6.6-7.2V
- Compatible motor: Electric brushed motor for RC cars (Up to 2 Sport Tuned Motor or motors more than 25 Turns)
- Drive frequency: 1kHz
- Output voltage for receiver: 6.0V/2A (BEC)
- Dimensions: 35.0x36.5x29.0mm
- Weight: 59g
