M-07 Concept Chassis Kit
M-07 Concept Chassis Kit
M-07 Concept Chassis Kit
M-07 Concept Chassis Kit

M-07 Concept Chassis Kit

(0)
  • Article number: 300058647

€179.99

Quantity:
1
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30

in stock, Delivery time 1-3 working days within Germany

!

This item can only be delivered to the following countries: Germany, Austria, Portugal, Netherlands, Hungary

!

due to the current situation surrounding the COVID-19 pandemic, there may be delays in delivery.

Product information

Article number: 300058647
Product: M-07 Concept Chassis Kit

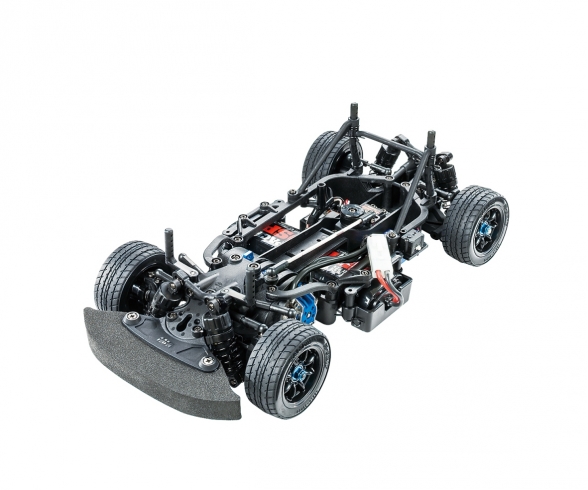

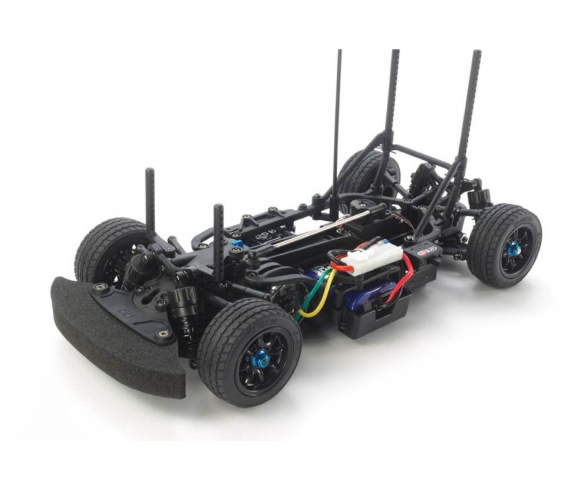

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.



Warning! Not suitable for children under 14 years.

Product details

Featured Components:

Monocoque frame chassis (with detachable lower section)
Long suspension arms
CVA oil dampers
Full ball bearings
Gear differential unit
Universal drive shafts
Hi-torque servo saver

• 1/10 scale R/C chassis assembly kit. Length: 332mm, width: 164mm.
• The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro. It is designed to offer excellent rigidity with easy maintenance.
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction.

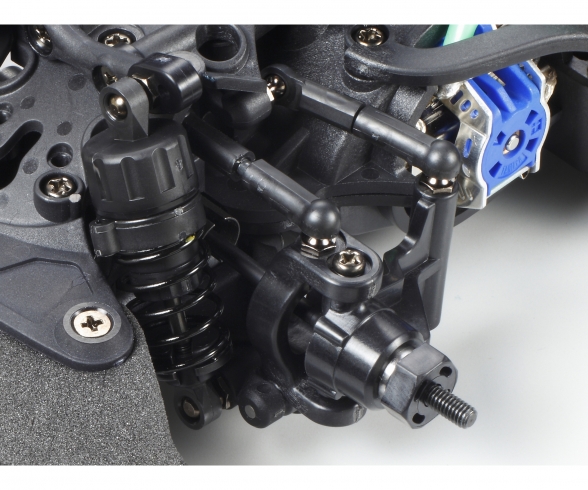

• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components. Rear toe can be adjusted simply using spacers.
• 4-wheel double wishbone suspension is fitted with CVA oil shocks.
• The TA06 oil-filled gear differential is used to drive the M-07. It is paired with universal drive shafts and full ball bearings.
• Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs.
• Compatible with Low-Profile servos.
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack.
• Body mounts have a new reinforced design for more secure body attachment.
